The sections below show plans for the ship’s profile and each deck, along with photographs of some of the highlighted areas.

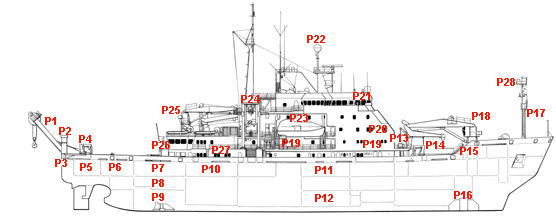

Profile
![Profile of RRS James Clark Ross](https://www.bas.ac.uk/wp-content/uploads/2015/03/jcr_profile.gif)

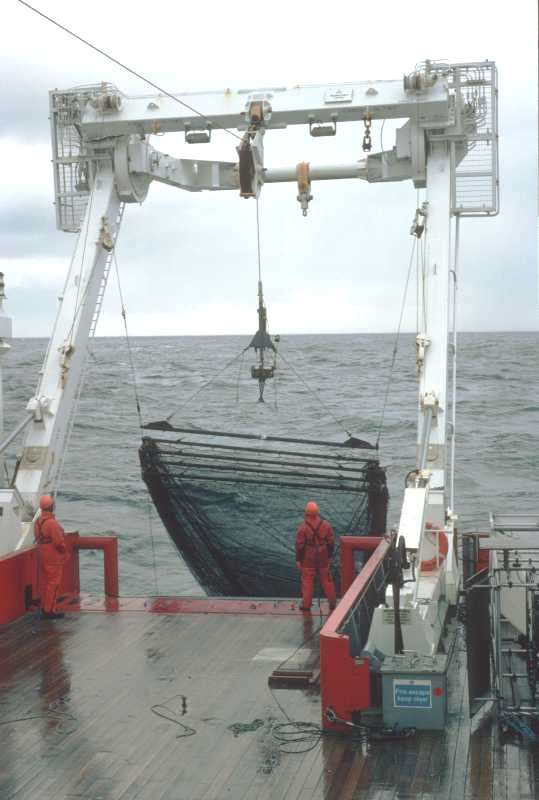

U1: Stern gantry
U2: Trawl post
U3: Hydraulic boom
U4: Scientific crane

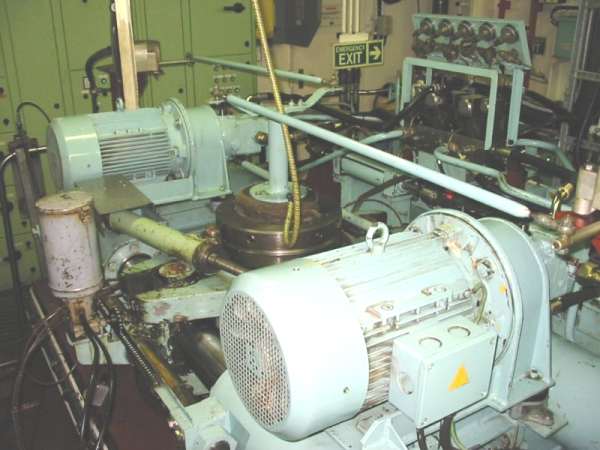

T1: Steering gear
T2: Seismic compressors
T3: Scientific hold

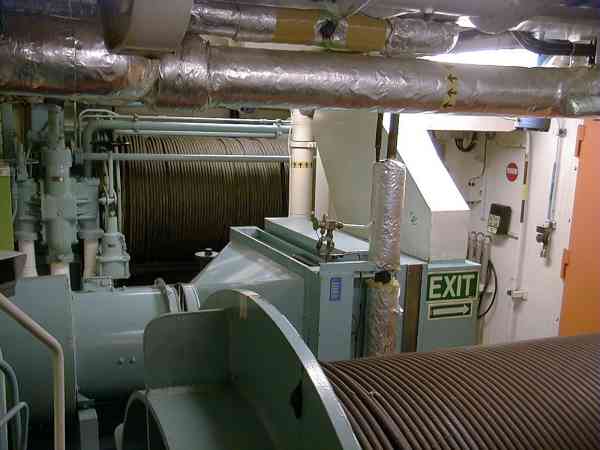

P8: Trawl/biological winch room
T6: Traction winch room

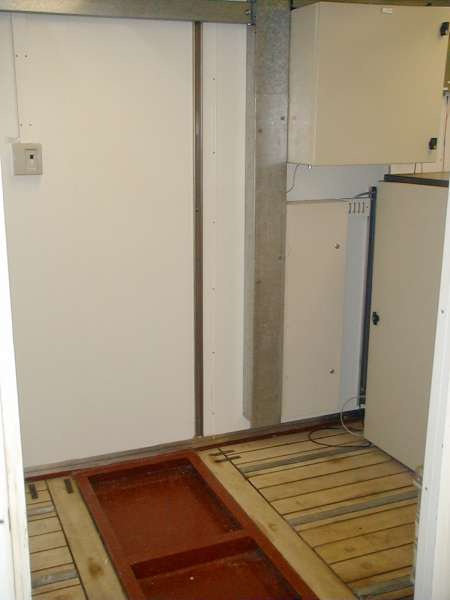

T14: Gravity meter room

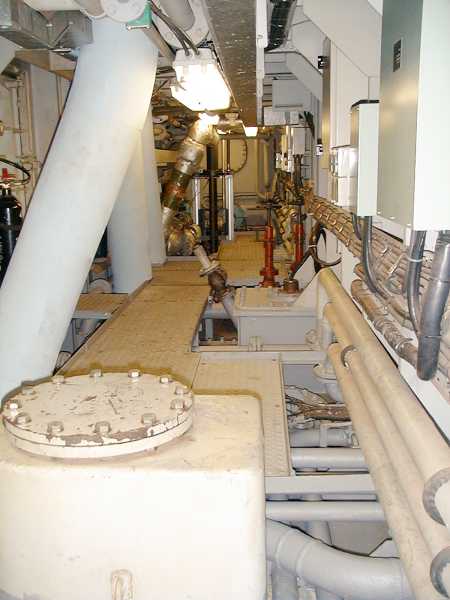

P12: Transducer space
F8: Echo sounder davits precision echo sounder (starboard)
U16: Stores Crane
U18: Scientific crane

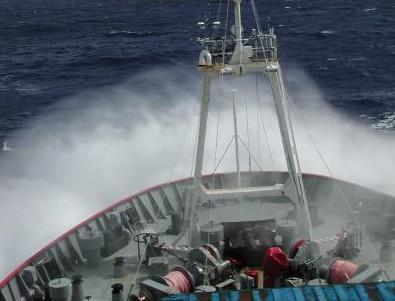

P17: Foremast
P18: Main cargo crane
F12: Four-berth cabins

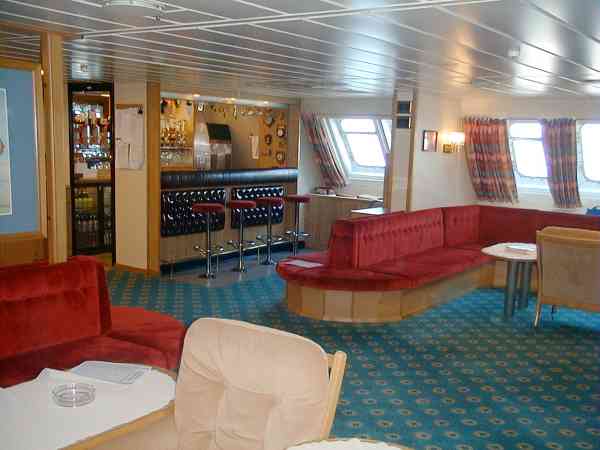

P20: Scientists’/officers’ lounge

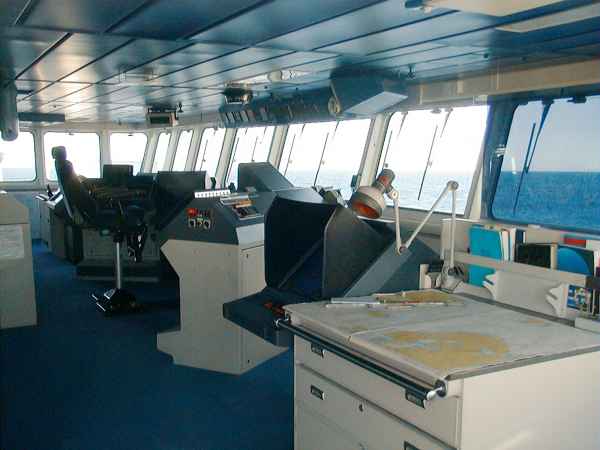

P21: Wheelhouse

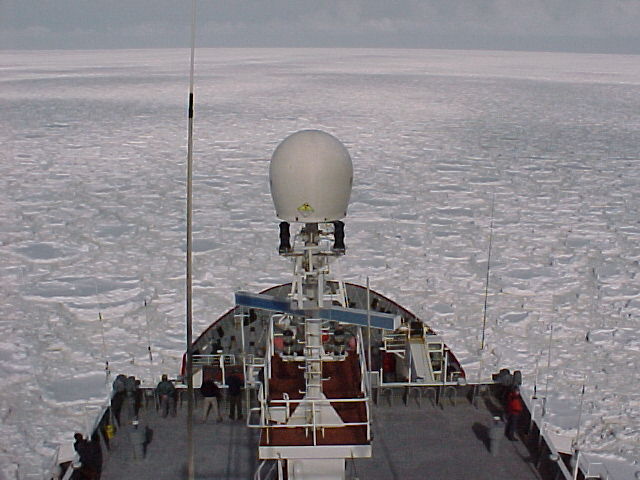

P22: Satellite comms

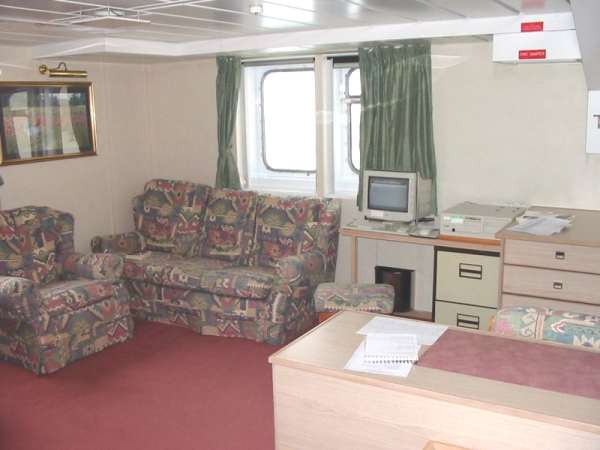

BR1: Chief Scientist’s suite
F4: Midships gantry
BT1: Aft Crane
P26: Gilson winches

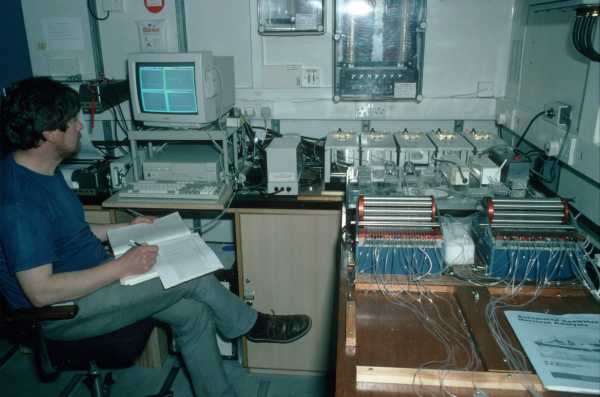

P27: Laboratories

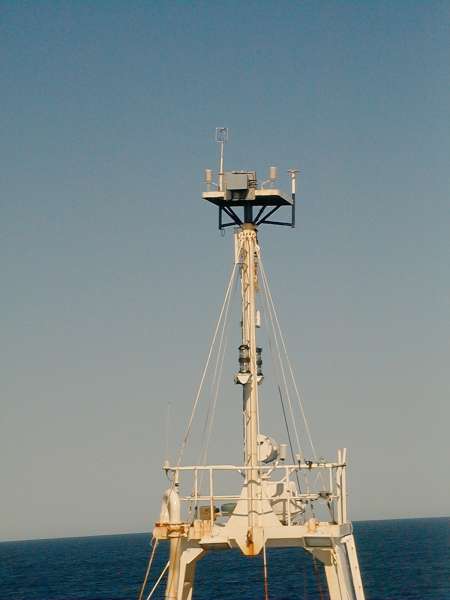

P28: Meteorological platform
Monkey Island

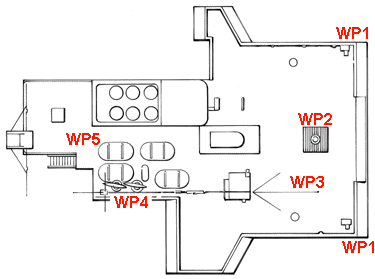

![Plan of RRS James Clark Ross monkey island](https://www.bas.ac.uk/wp-content/uploads/2015/03/jcr_monkey_island.gif)

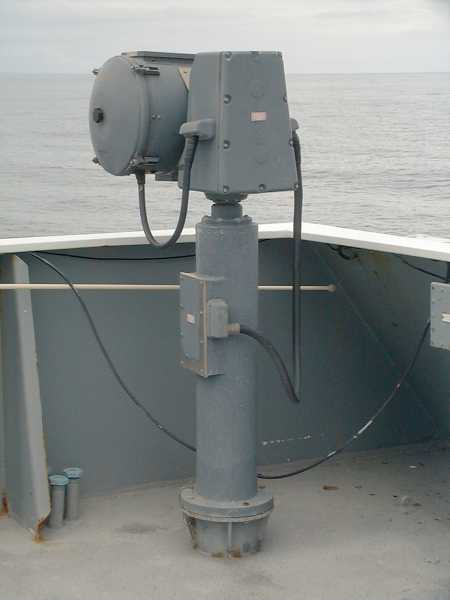

WP1: Remote-controlled searchlights

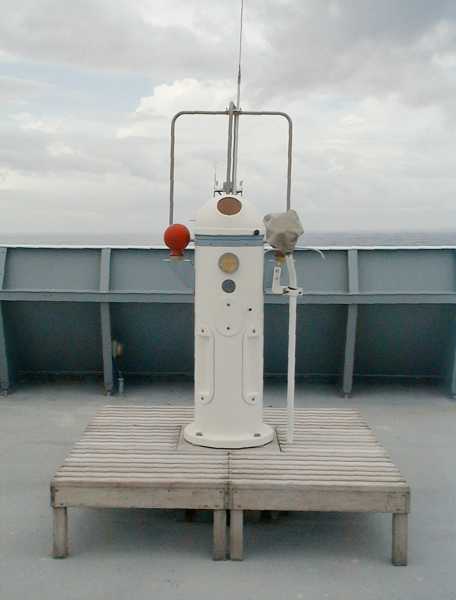

WP2: Main standard magnetic compass

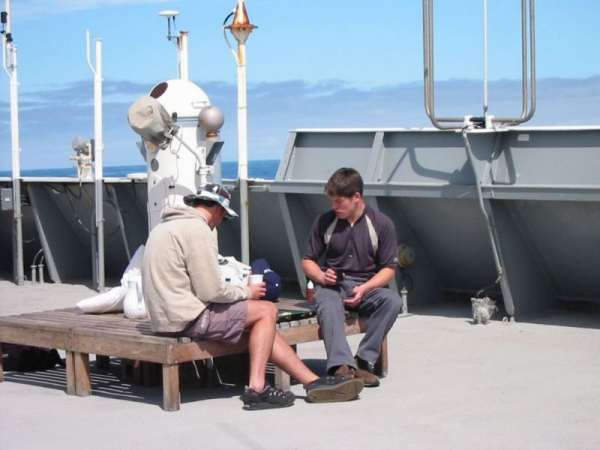

WP3: Main Monkey Island

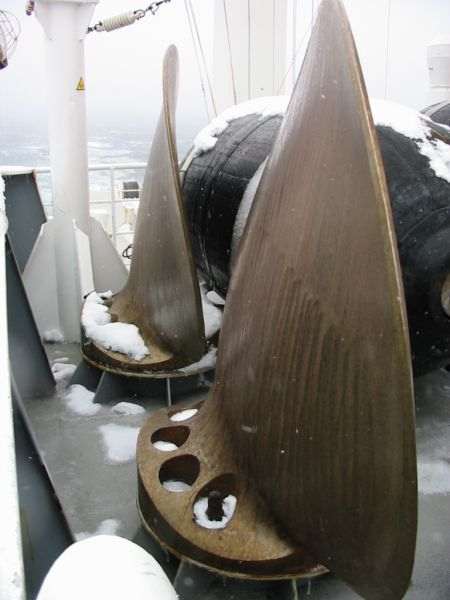

WP4: Spare propeller blades (x2)

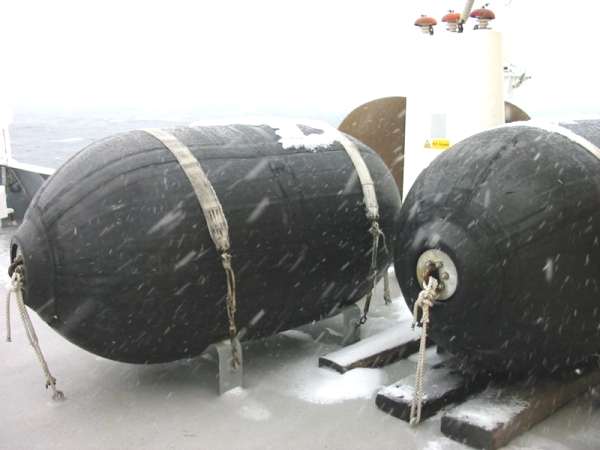

WP5: Yokohama fenders (x5)
Navigation bridge
![Plan of RRS James Clark Ross navigation bridge](https://www.bas.ac.uk/wp-content/uploads/2015/03/jcr_navigation_bridge.gif)

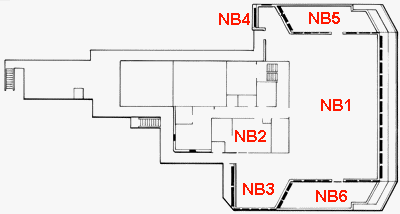

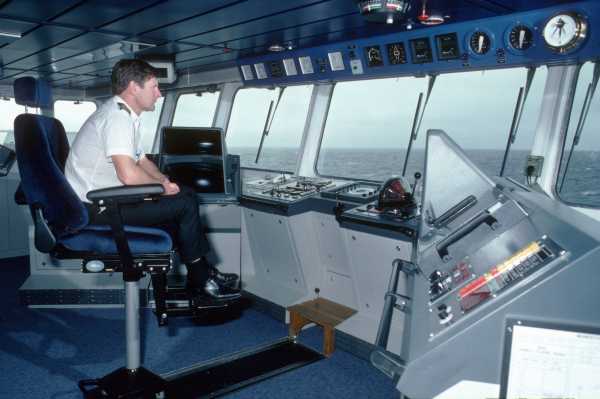

NB1: Navigation bridge

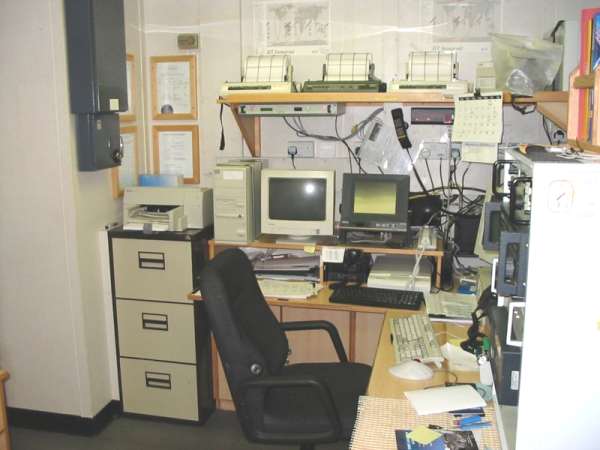

NB2: Radio room

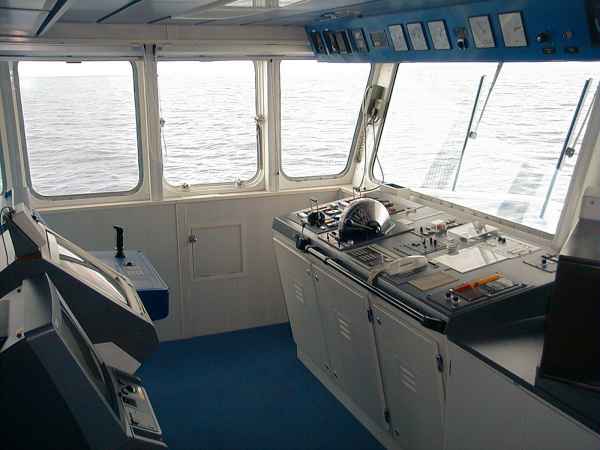

NB3: Aft navigation bridge

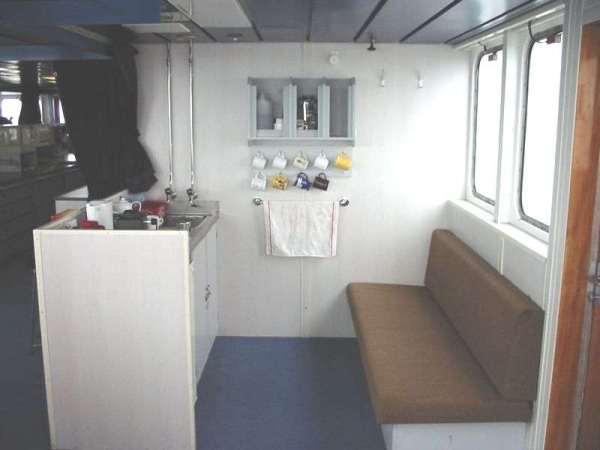

NB4: Navigation bridge galley

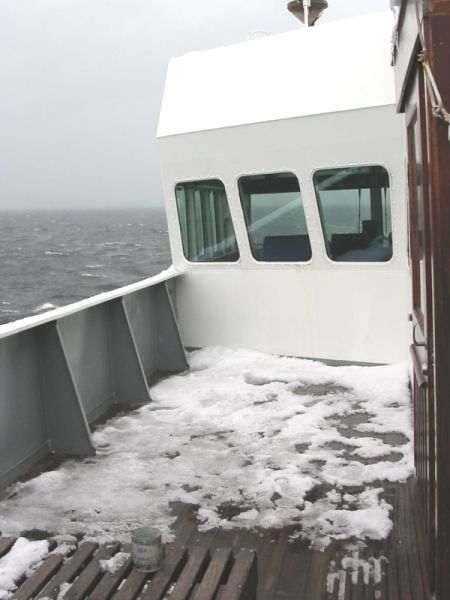

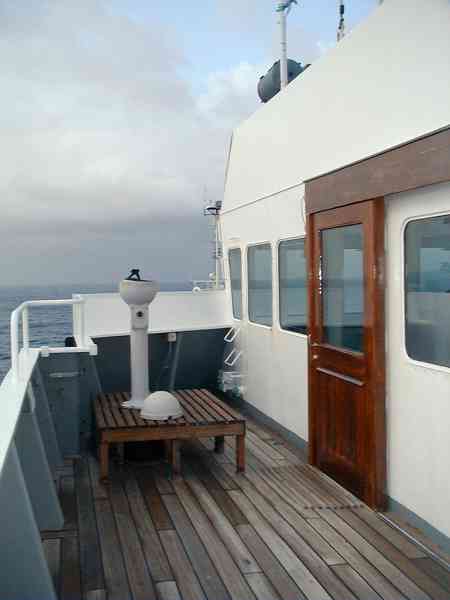

NB5: Bridge wing (port)
NB6: Bridge wing (starboard)
Bridge deck
![Plan of RRS James Clark Ross bridge deck](https://www.bas.ac.uk/wp-content/uploads/2015/03/jcr_bridge_deck.gif)

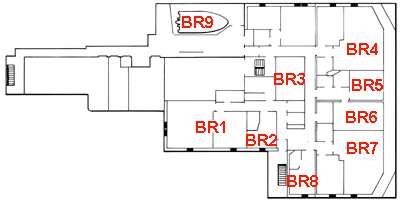

BR1: Chief Scientist’s suite

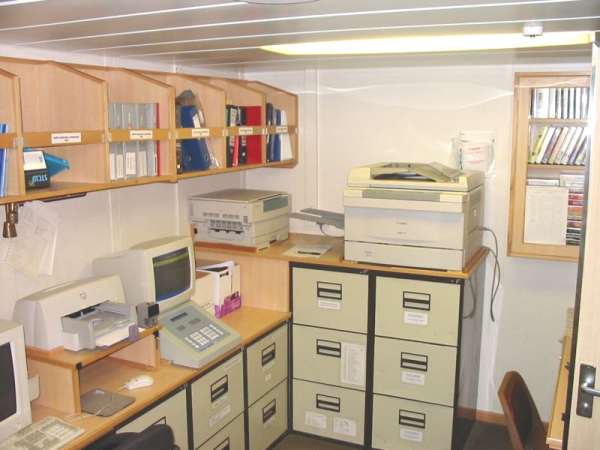

BR3: Combined Office

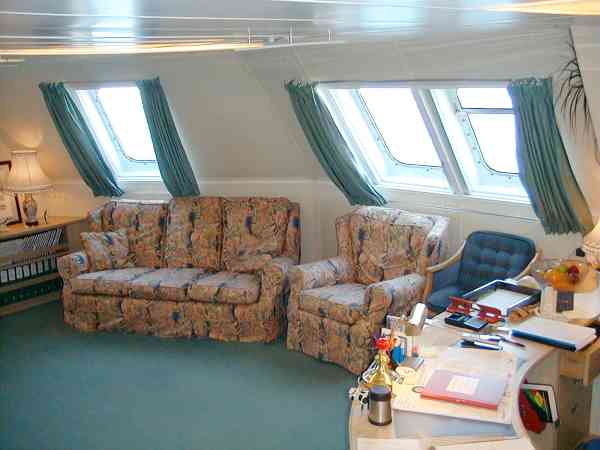

BR4: Chief Engineer’s cabin

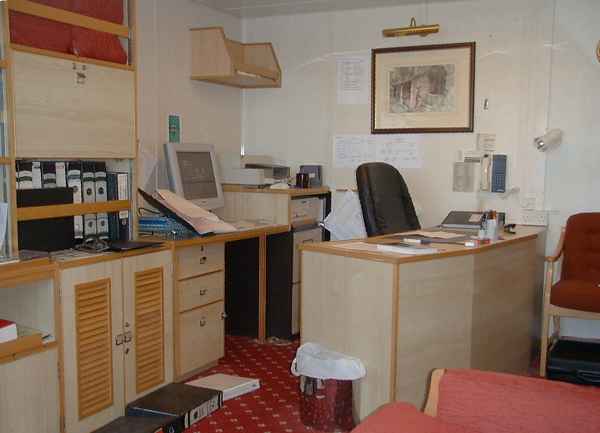

BR5: Mate’s cabin

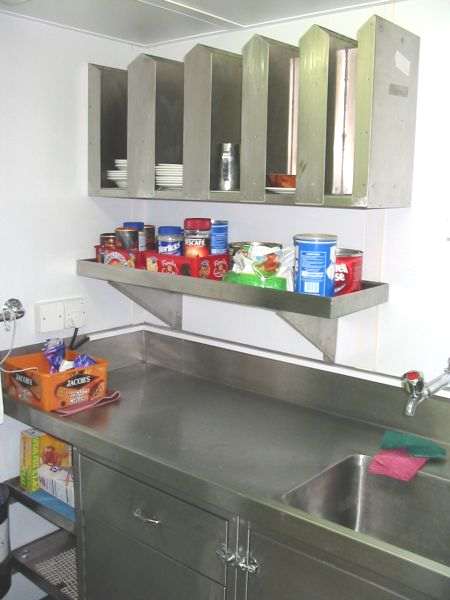

BR6: Bridge deck pantry
BR7: Captain’s cabin
BR8: 2nd Officer’s cabin

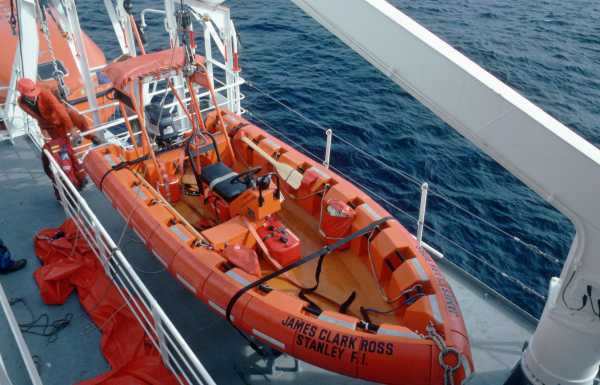

BR9: Rescue boat
Boat deck

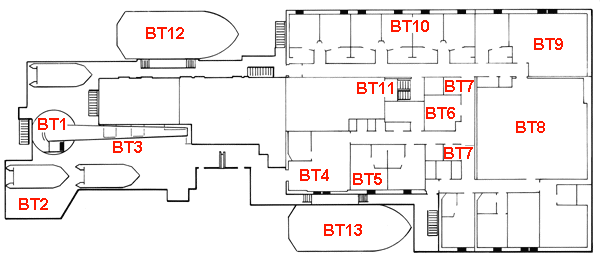

![Plan of RRS James Clark Ross boat deck](https://www.bas.ac.uk/wp-content/uploads/2015/03/jcr_boat_deck.gif)

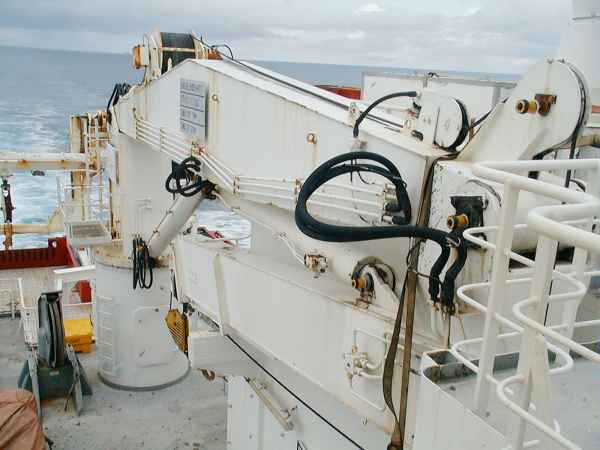

BT1: Aft Crane

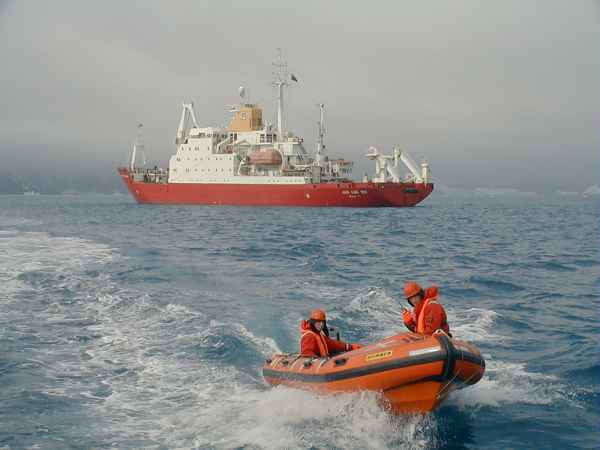

BT2: Humbers

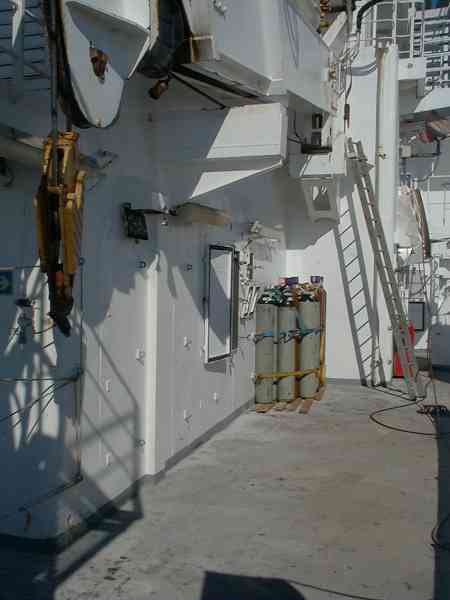

BT3: Deck storage area

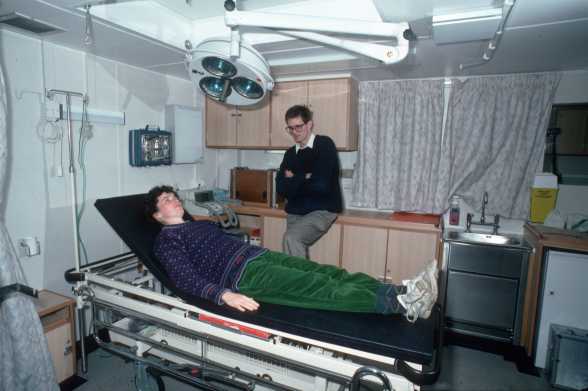

BT4: Hospital
BT6: Laundry
BT8: Officers’ and scientists’ bar
BT9: Library and conference room

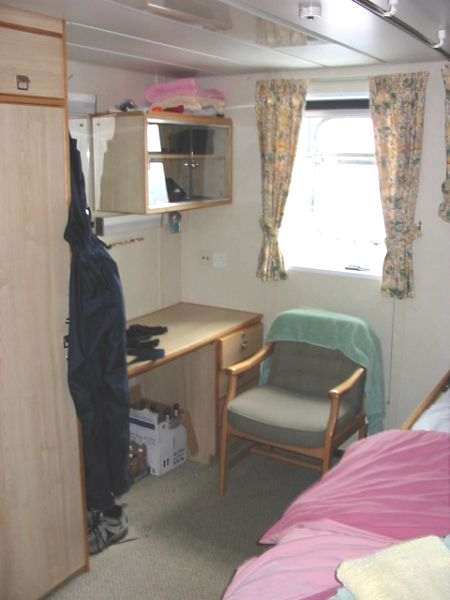

BT10: Two-berth cabins

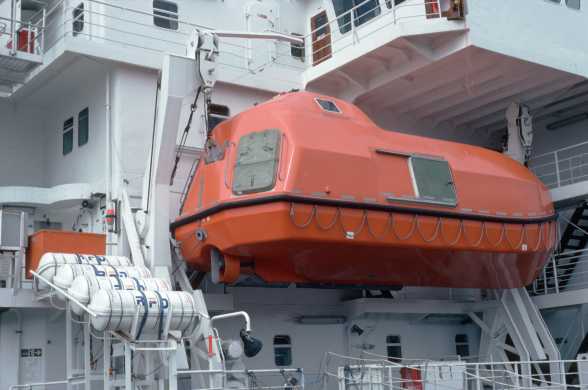

BT12: Lifeboat

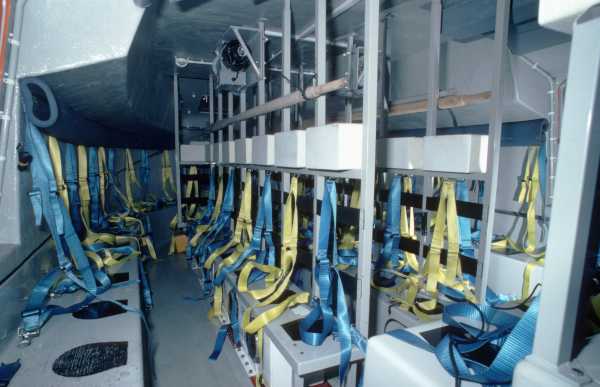

BT13: Interior of lifeboat
Forecastle deck

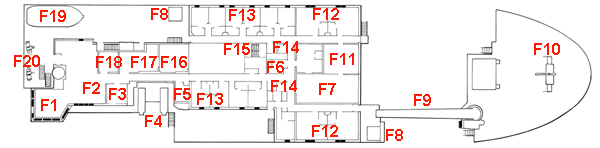

![Plan of RRS James Clark Ross forecastle deck](https://www.bas.ac.uk/wp-content/uploads/2015/03/jcr_forecastle_deck.gif)

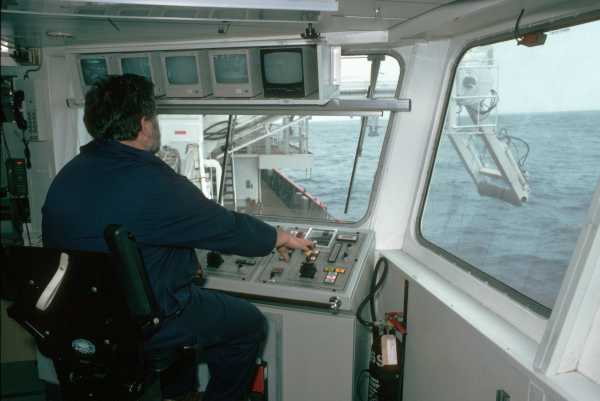

F1: Winch control room side gantry controls
F1: Winch control room stern gantry controls

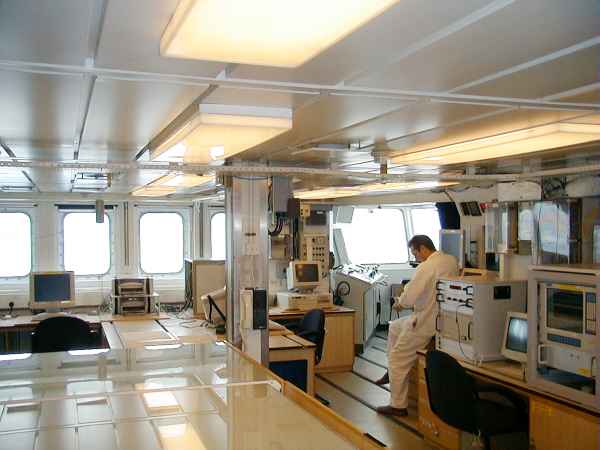

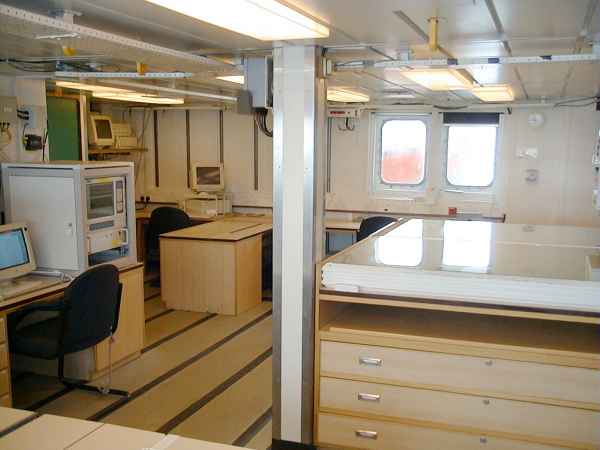

F2: Underway instrument and control room
(port)
F2: Underway instrument and control room
(starboard)

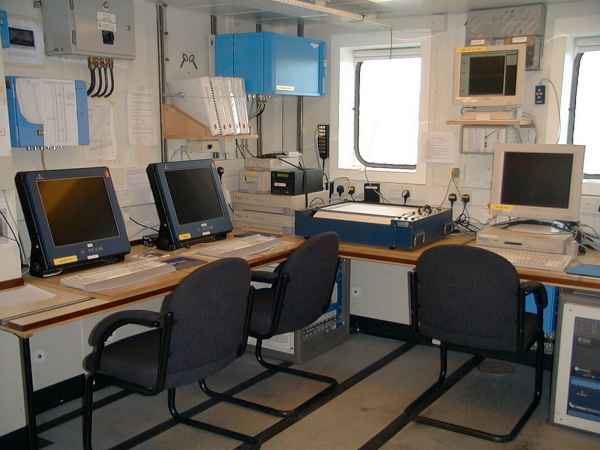

F3: Swathbathymetry suite

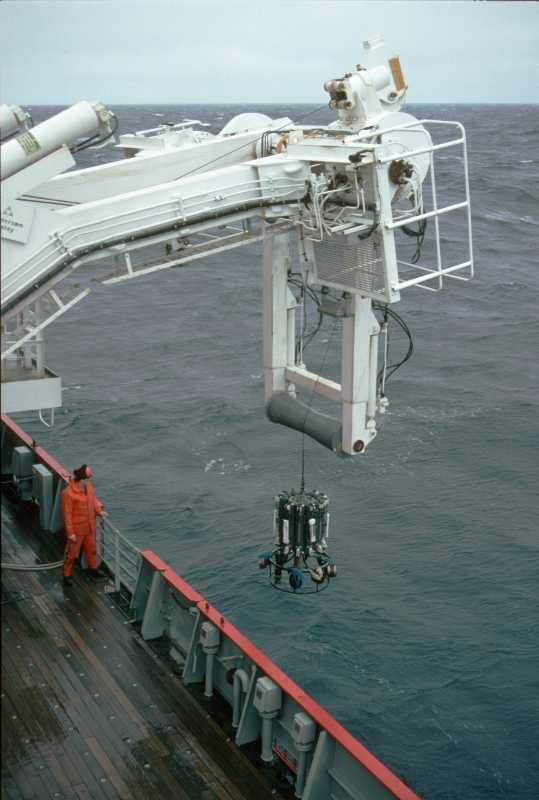

F4: Midships gantry

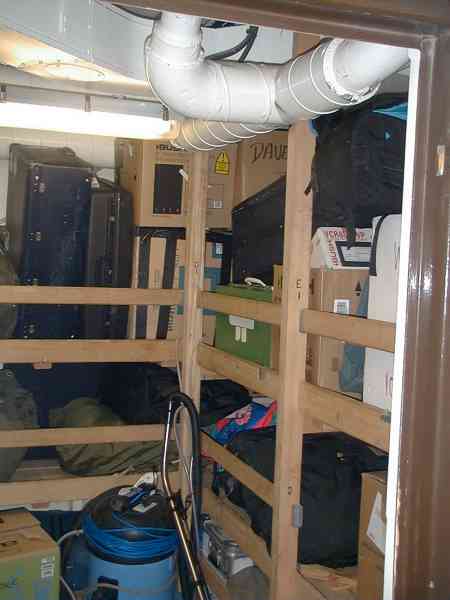

F6: Baggage locker

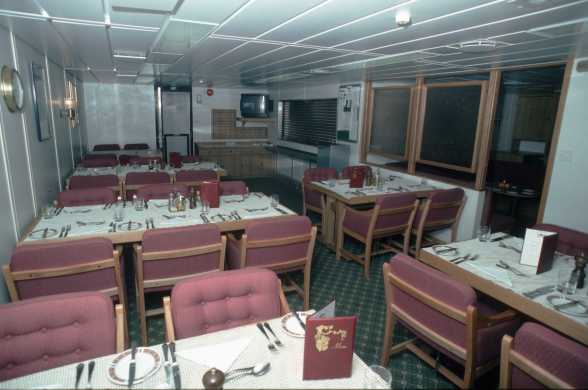

F7: Officers’ and scientists’ saloon

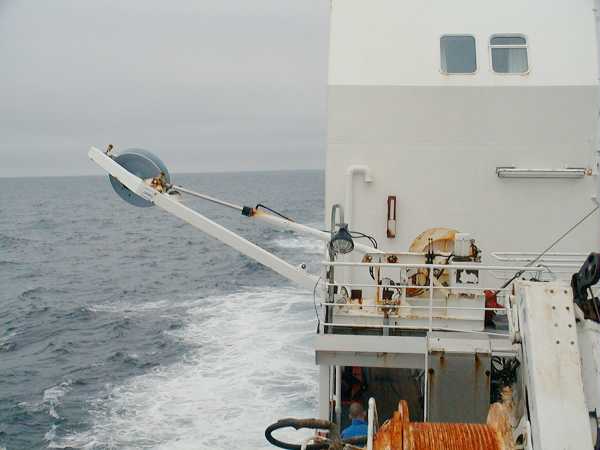

F8: Echo sounder davits precision echo sounder (starboard)
F8: Echo sounder davits
sound velocity probe (port)

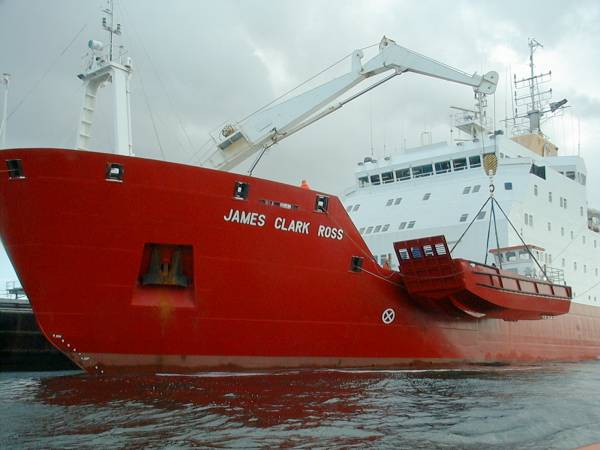

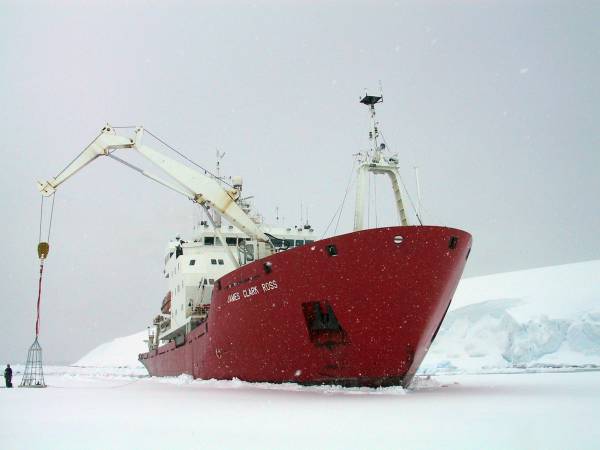

F9: Main cargo crane
F10: Forward mast
F11: Coffee lounge

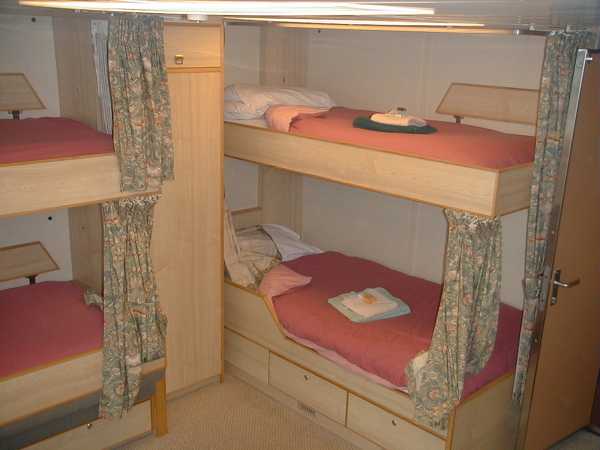

F12: Four-berth cabins
F13: Two-berth cabins

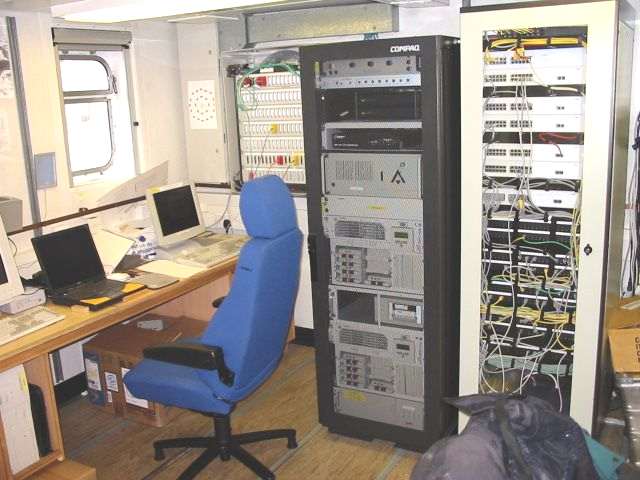

F16: Computer operations room

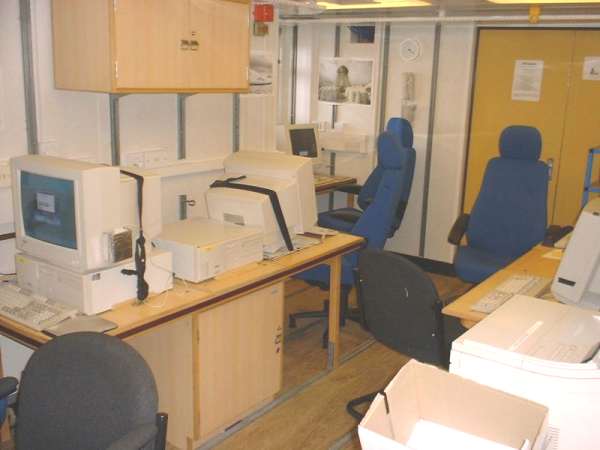

F17: Data prep room

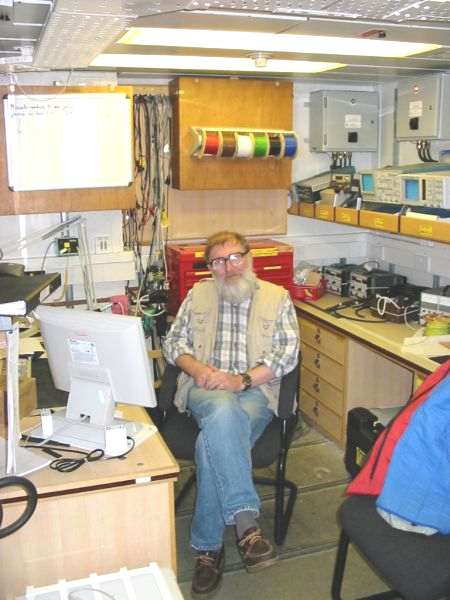

F18: Electronics Workshop

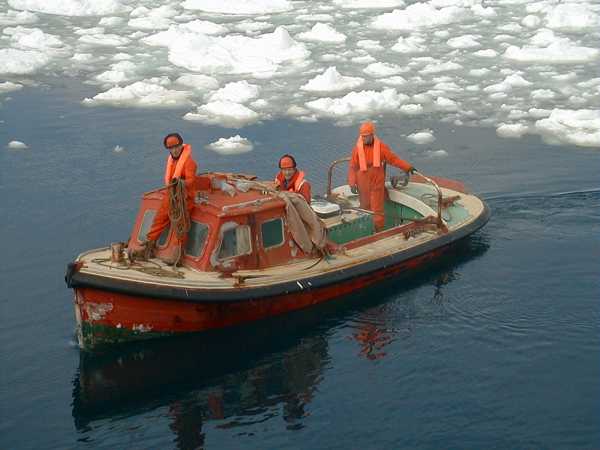

F19: Work boat

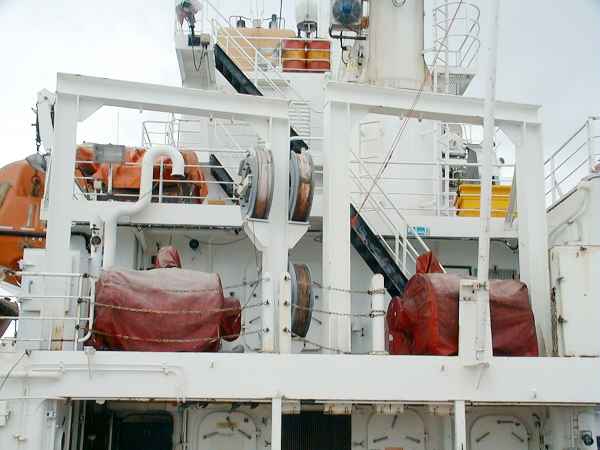

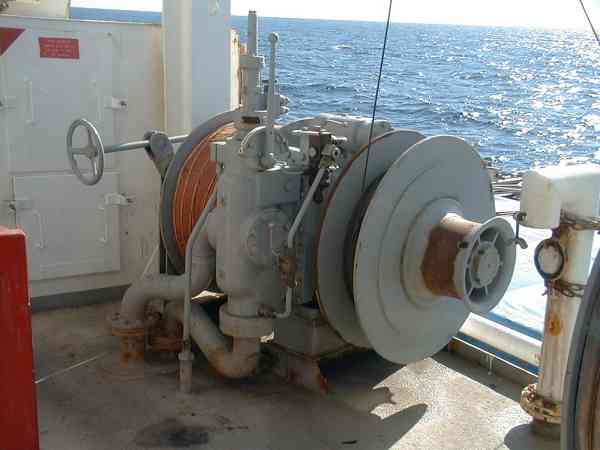

F20: Gilson Winches and fixed overhead gantries
Upper deck

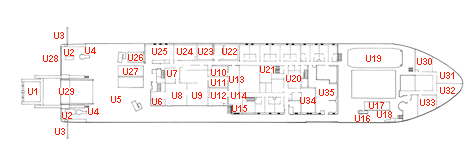

![Plan of RRS James Clark Ross](https://www.bas.ac.uk/wp-content/uploads/2015/03/jcr_upper_deck.gif)
U1: Stern gantry

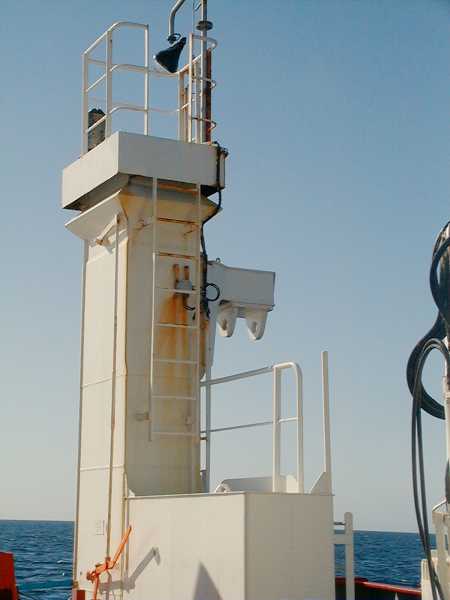

U2: Trawl post

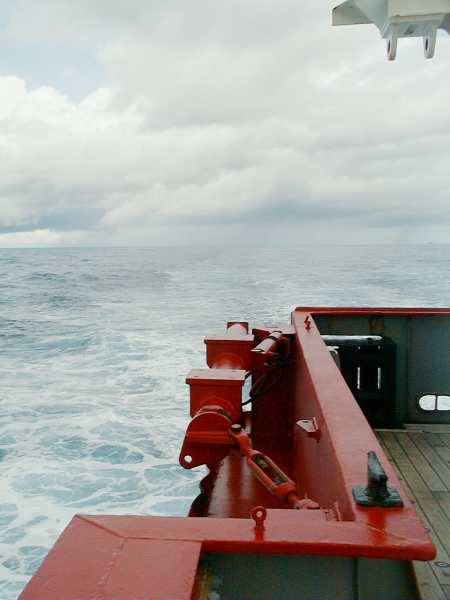

U3: Hydraulic boom

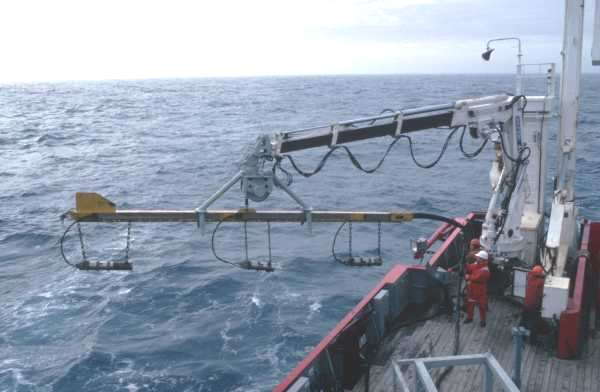

U4: Scientific crane

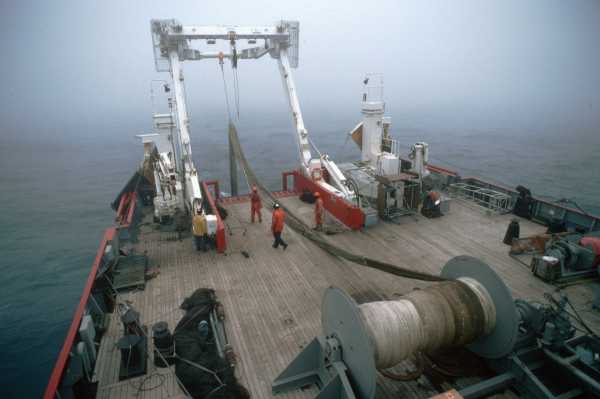

U5: Aft deck
U6: Chemicals locker

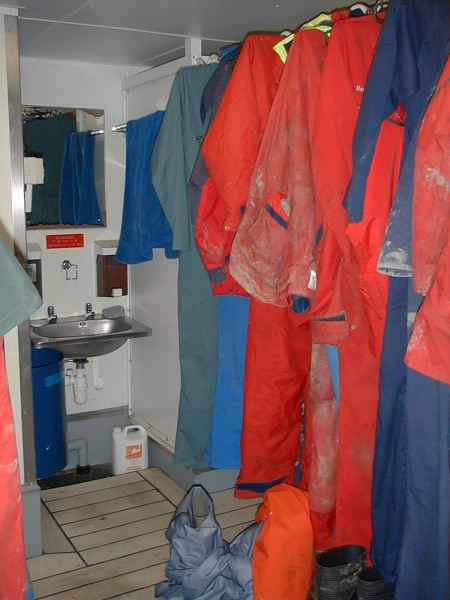

U7: Store clothing annex

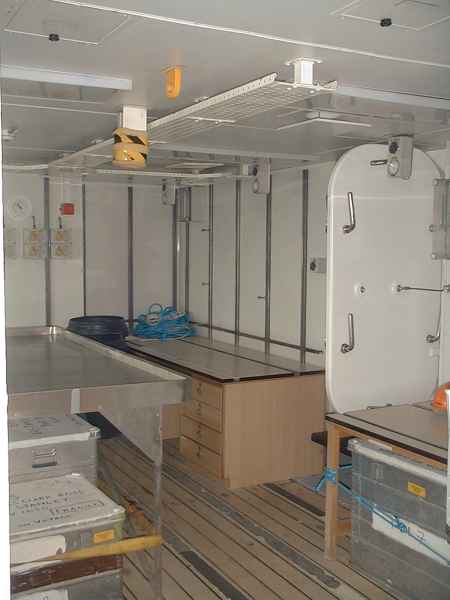

U8: Wet lab (inboard)

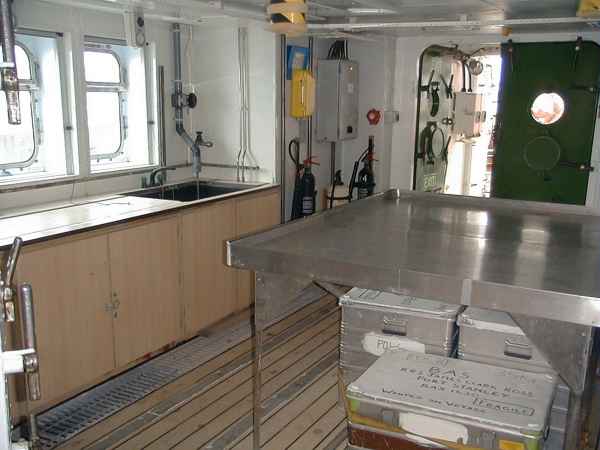

U8: Wet lab (outboard)

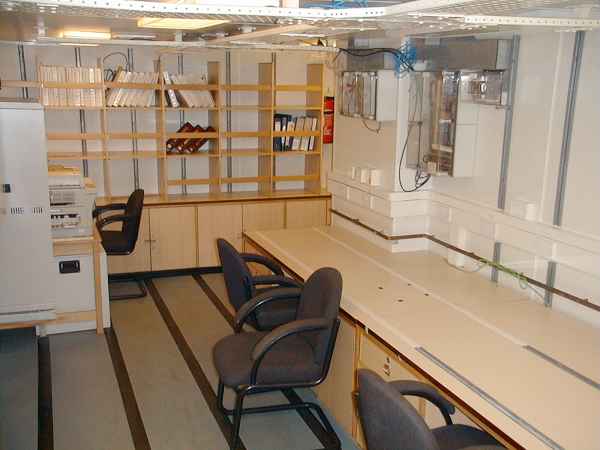

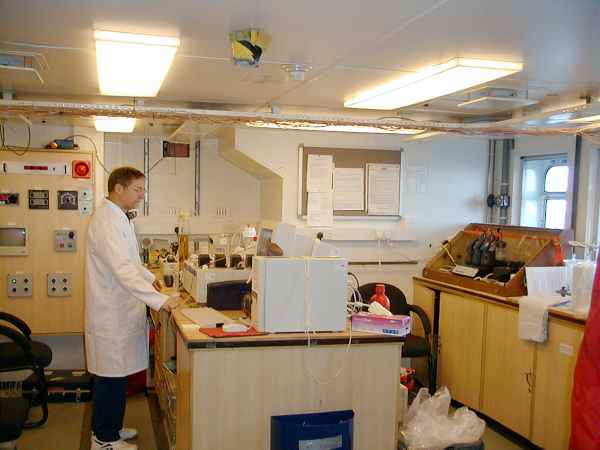

U9: Main lab
U9: Main lab (port)

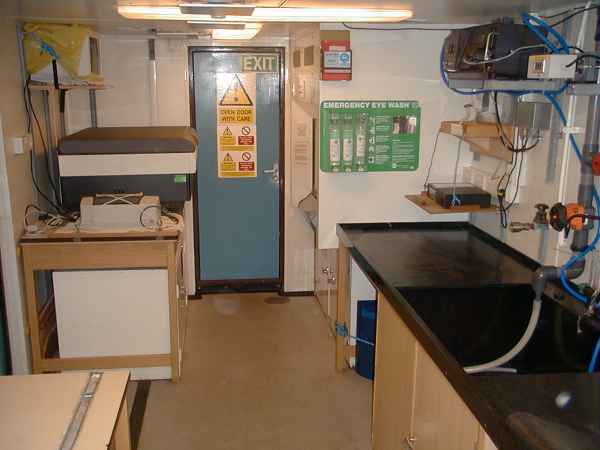

U13: Preparation lab (starboard)
U10: Microbiology/radioactive lab

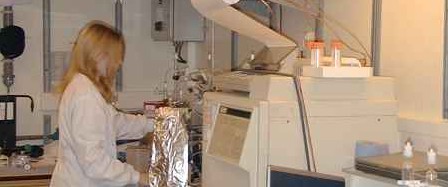

U11: Bio lab

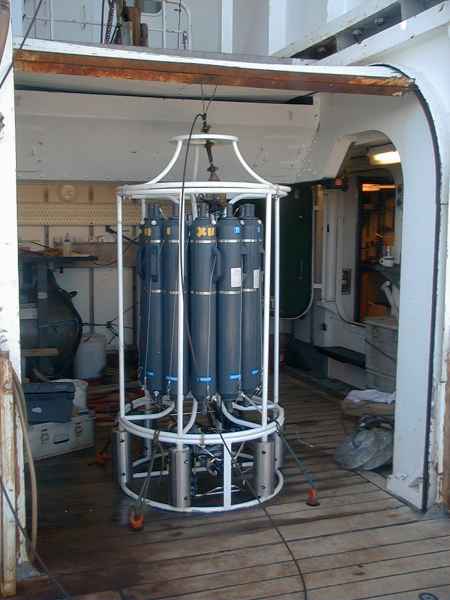

U12: Water bottle annex
U13: Preparation lab (port)

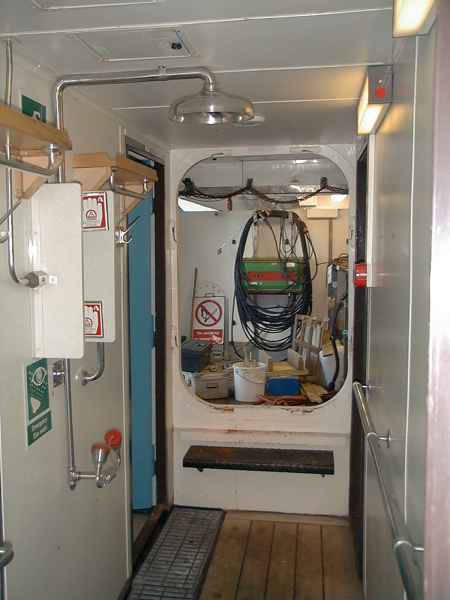

U14: Emergency shower
U15: Chemistry lab

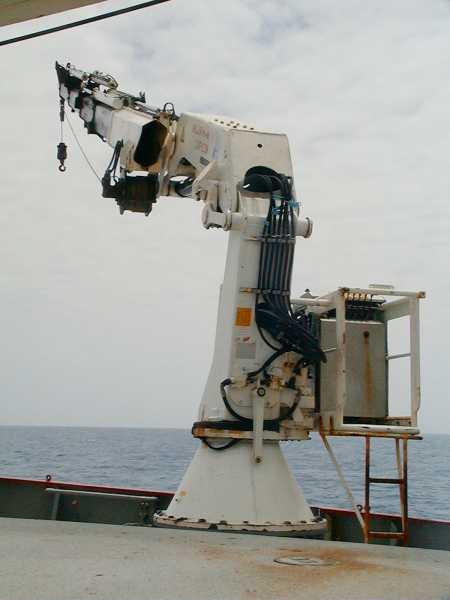

U16: Stores Crane

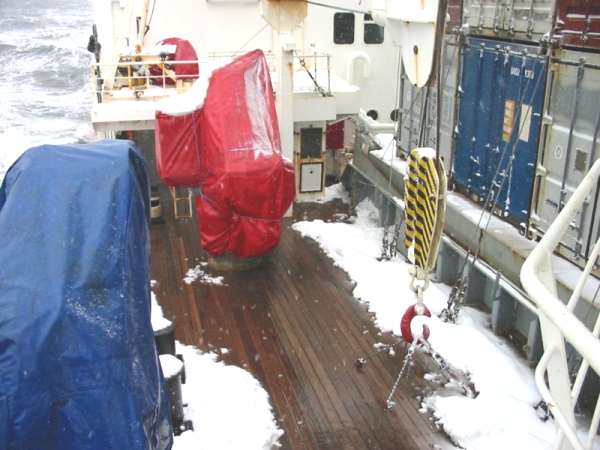

U17: Foredeck starboard

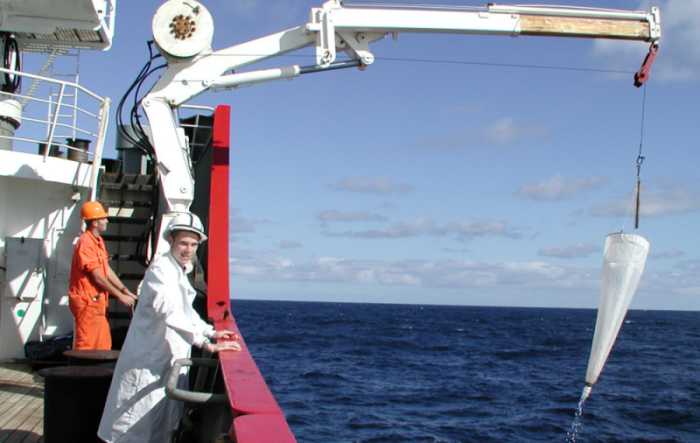

U18: Scientific crane

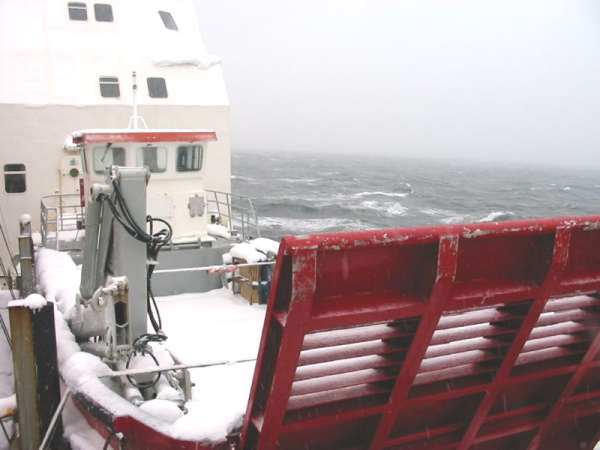

U19: Cargo tender

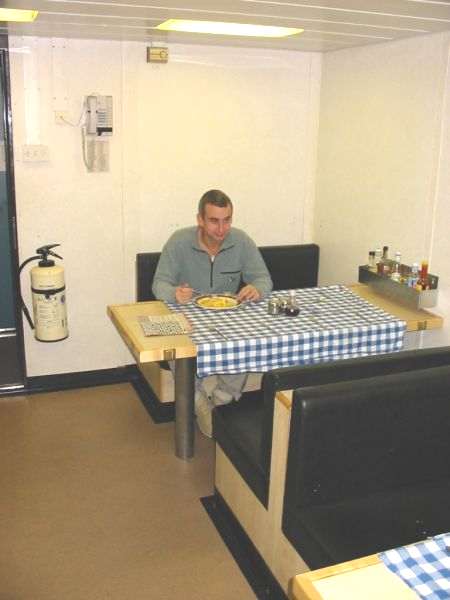

U20: Duty mess

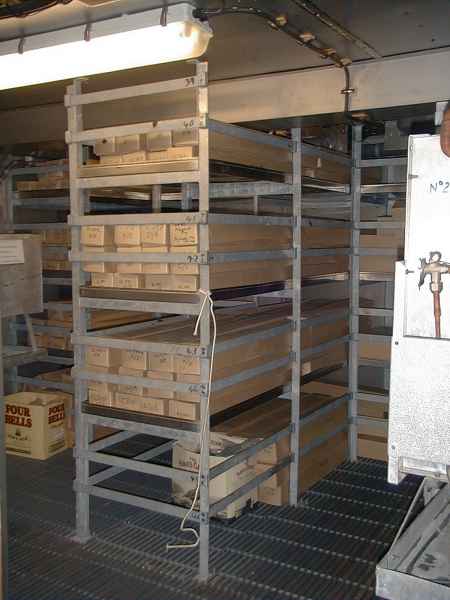

U22: Scientific freezer
U23: Cool specimen room

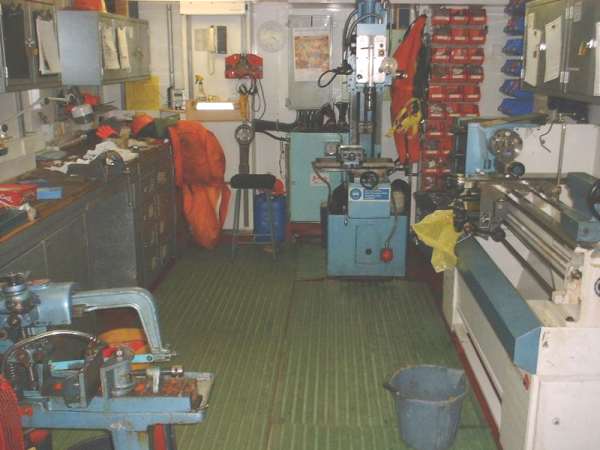

U24: Scientific workshop

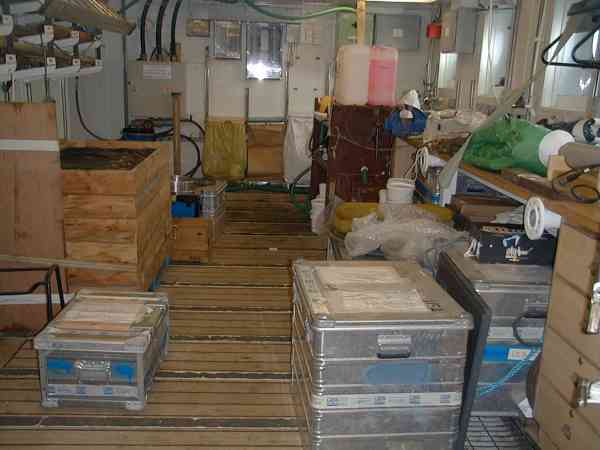

U25: Rough Workshop

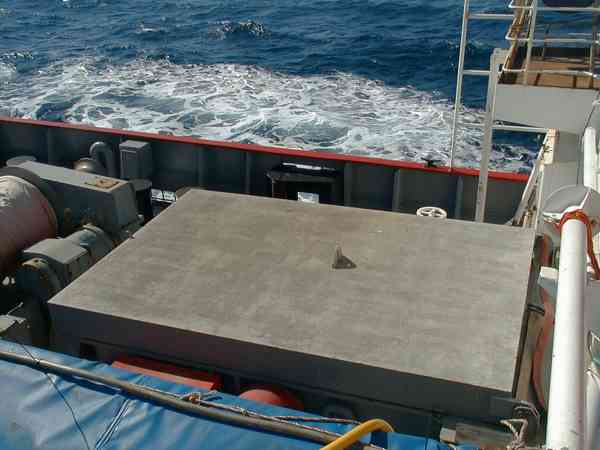

U26: Scientific Hold Hatch

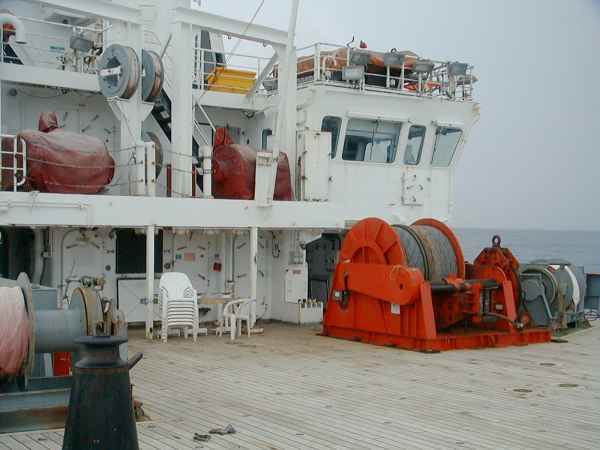

U27: Space for containers

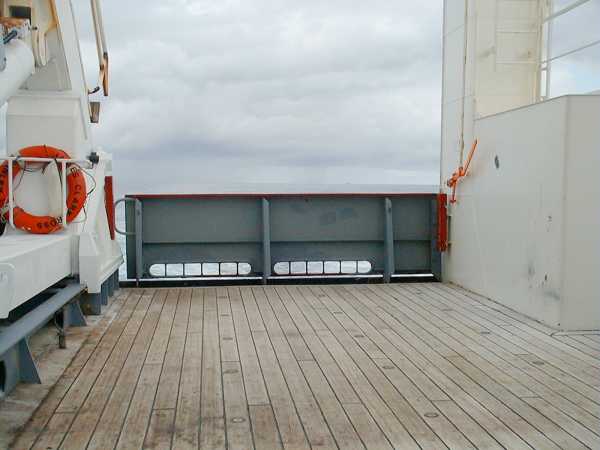

U28: Removable bulwark

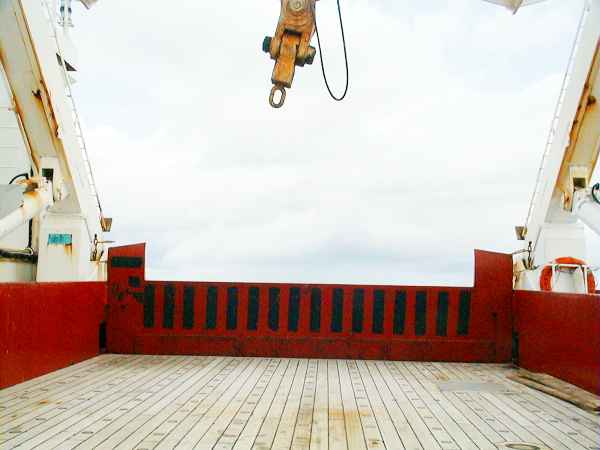

U29: Folding hydraulic bulwark

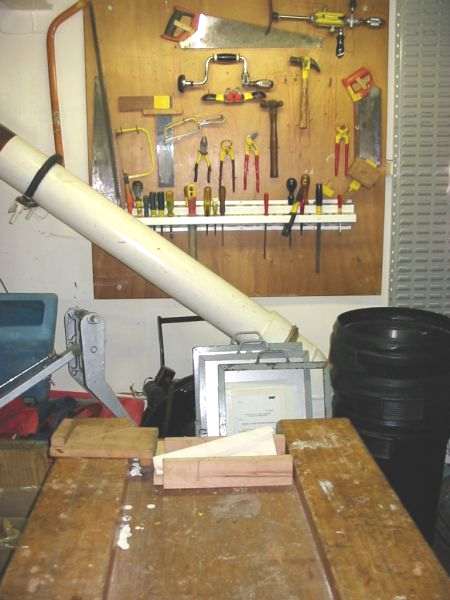

U30: Carpenter’s store

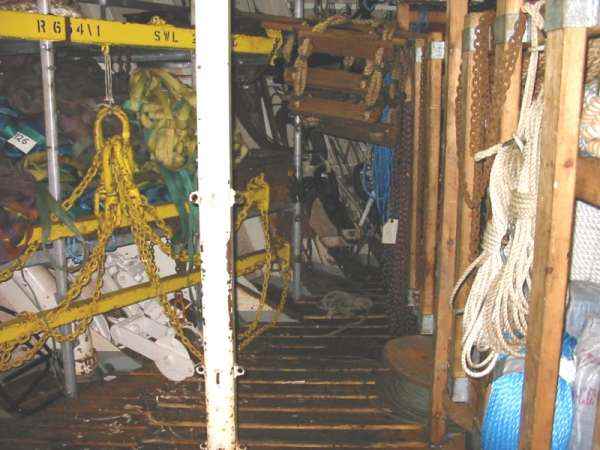

U31: Rope store

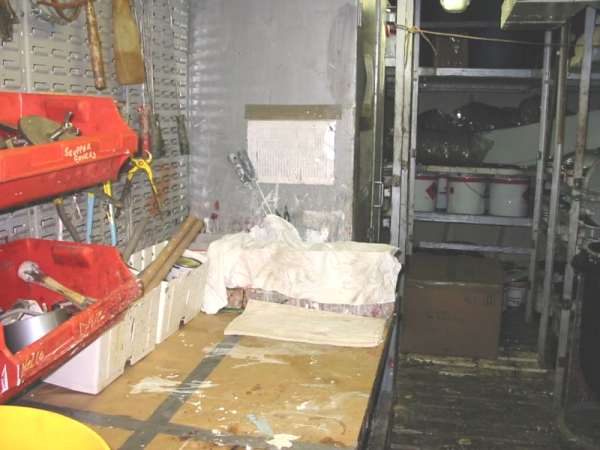

U32: Paint store
U33: Bosun’s store
U34: Crew bar
U35: Galley
Tween deck
![Plan of RRS James Clark Ross tween deck](https://www.bas.ac.uk/wp-content/uploads/2015/03/jcr_tween_deck.gif)

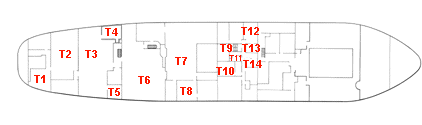

T1: Steering gear
T2: Seismic compressors

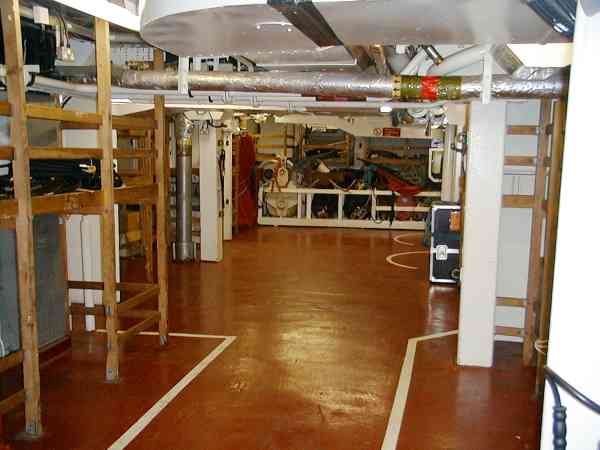

T3: Scientific hold

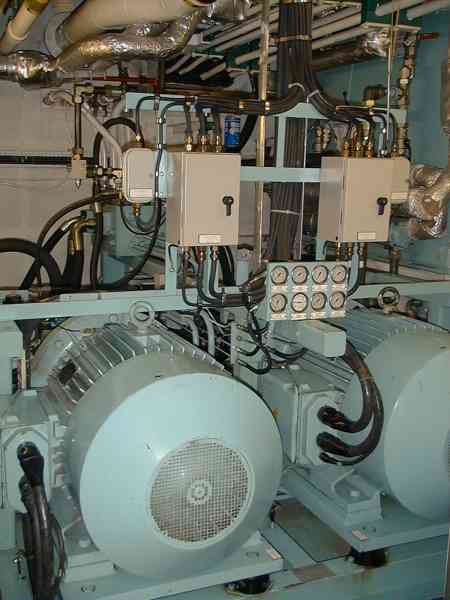

T5: Scientific power pack room

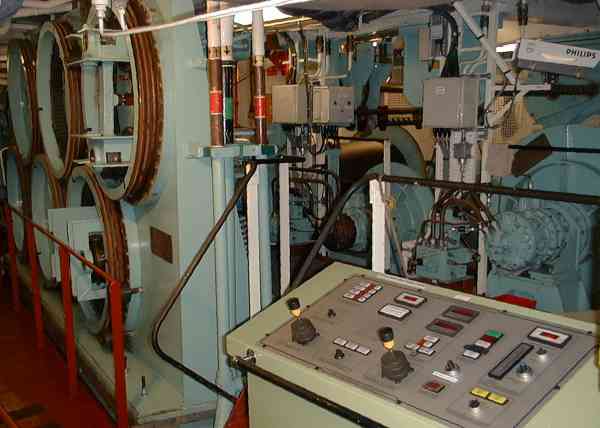

T6: Traction winch room

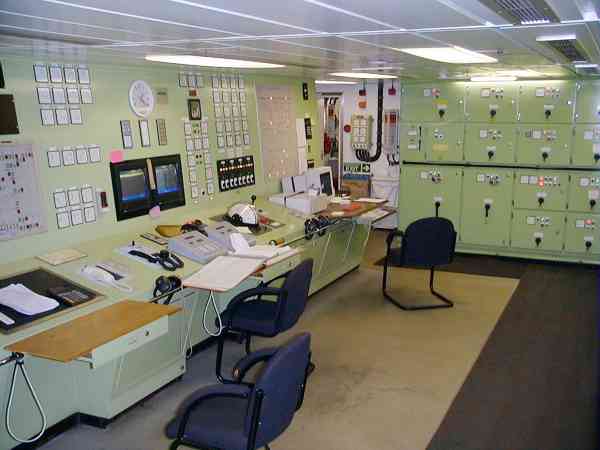

T7: Engine control room

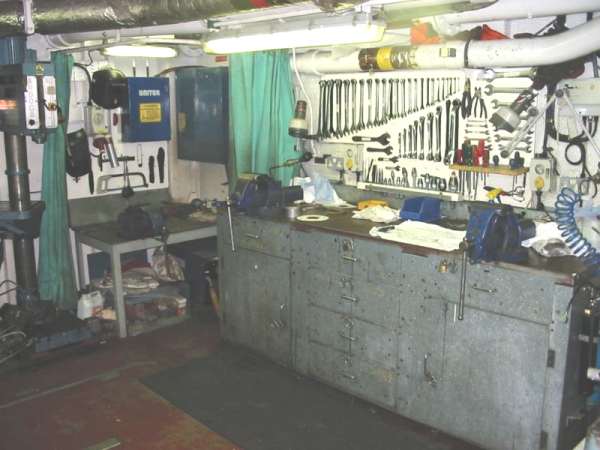

T8: Engineers’ workshop

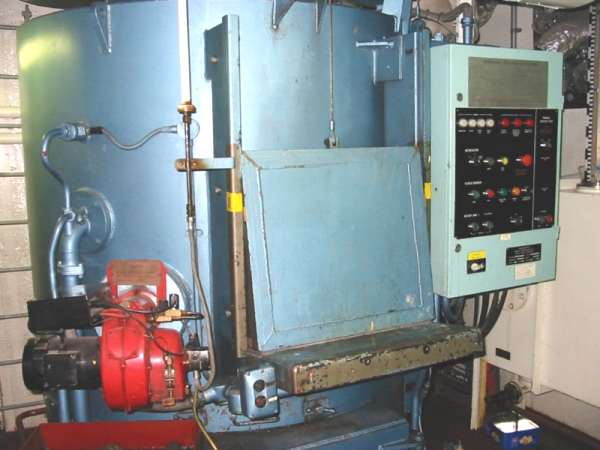

T10: Incinerator room

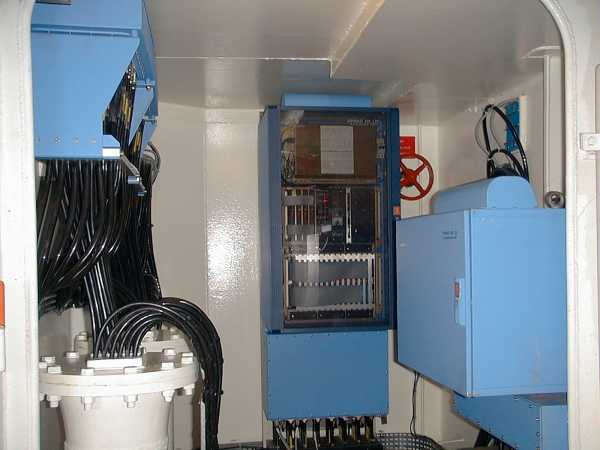

T11: Swathbathymetry equipment

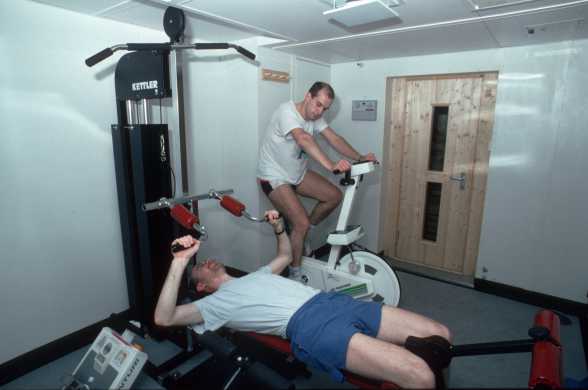

T12: Gym
T13: Sauna
T14: Gravity meter room
Lower deck
![Plan of RRS James Clark Ross lower deck](https://www.bas.ac.uk/wp-content/uploads/2015/03/jcr_lower_deck.gif)

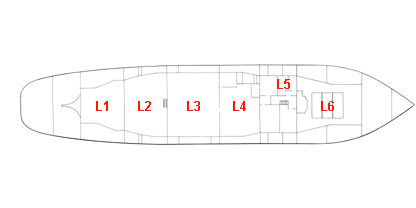

L1: Propeller shaft

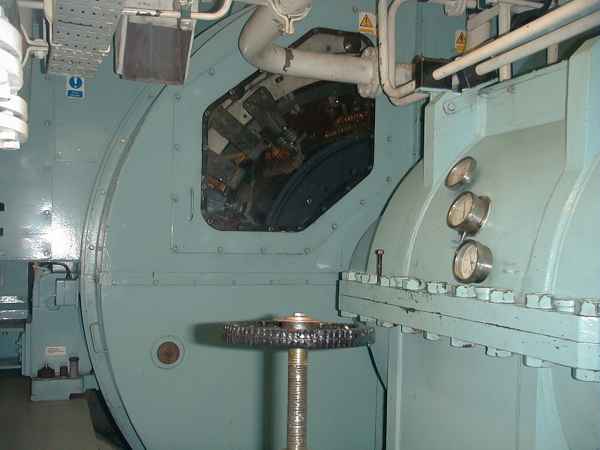

L2: Propulsion motor

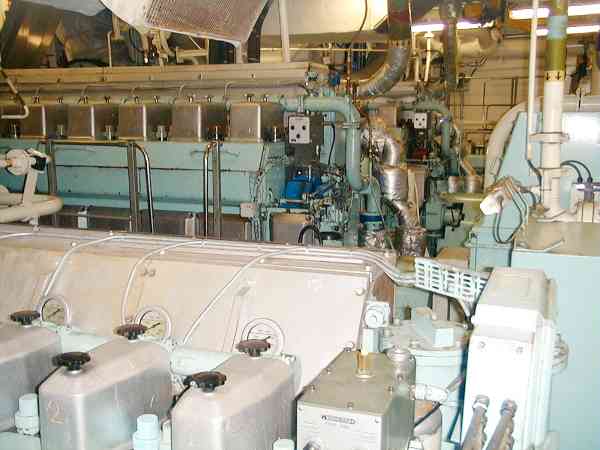

L3: Main alternator room

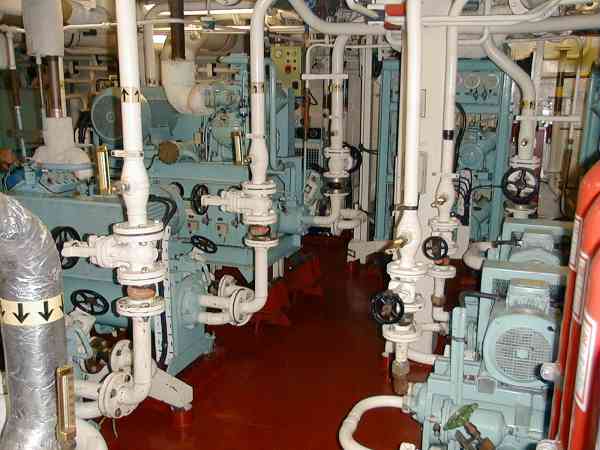

L4: Auxiliary machinery space

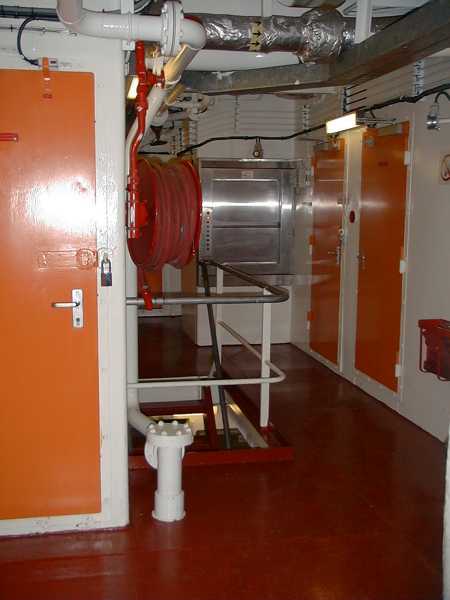

L5: Stores

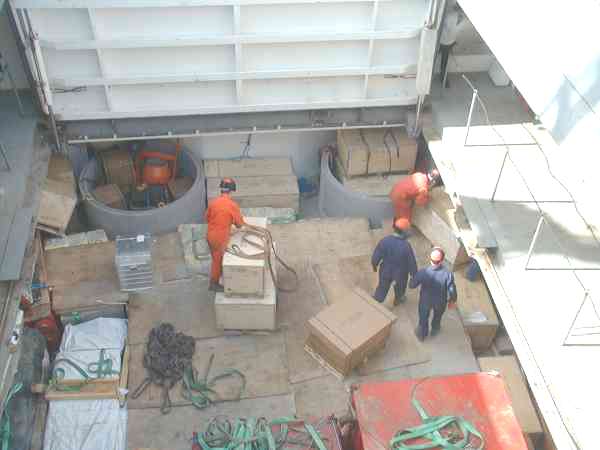

L6: Number two hold
